Structural Steel &Miscellaneous MetalsDetailing

Serving Fabricators Nationwide

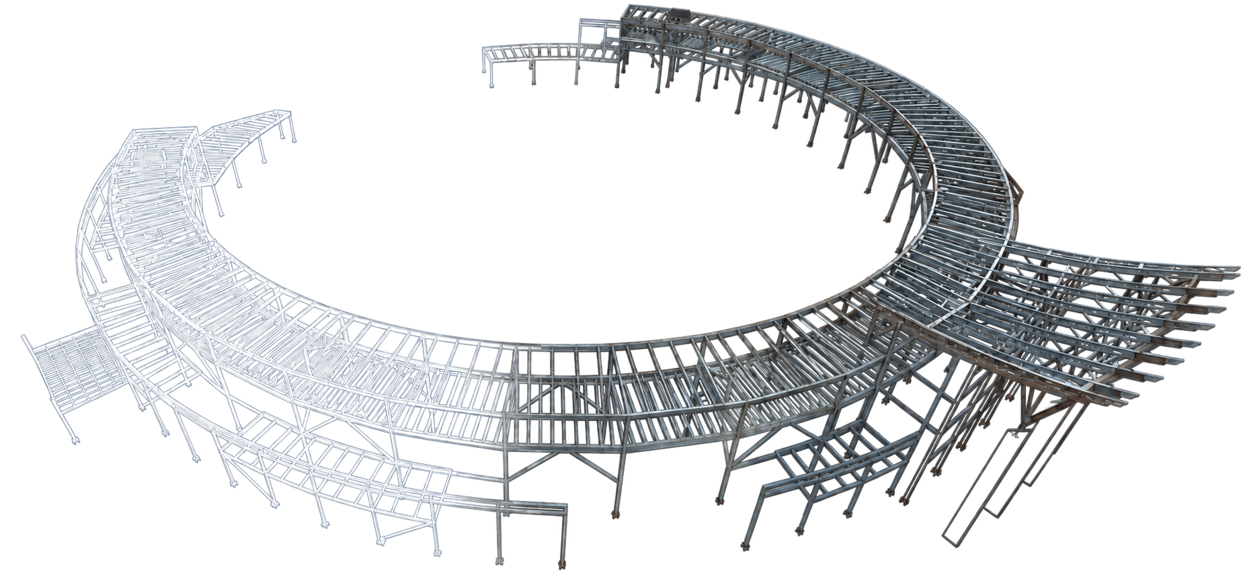

Structural steel model transitioning from a line drawing to fabricated steel

35 States and Counting

600+ Projects Completed

17 Years in Business

Division 5 Is the Solution to Your Detailing Needs

We work with fabricators nationwide to deliver the highest quality shop drawings in the industry,
increasing the accuracy and efficiency of your detailing while decreasing your cost.

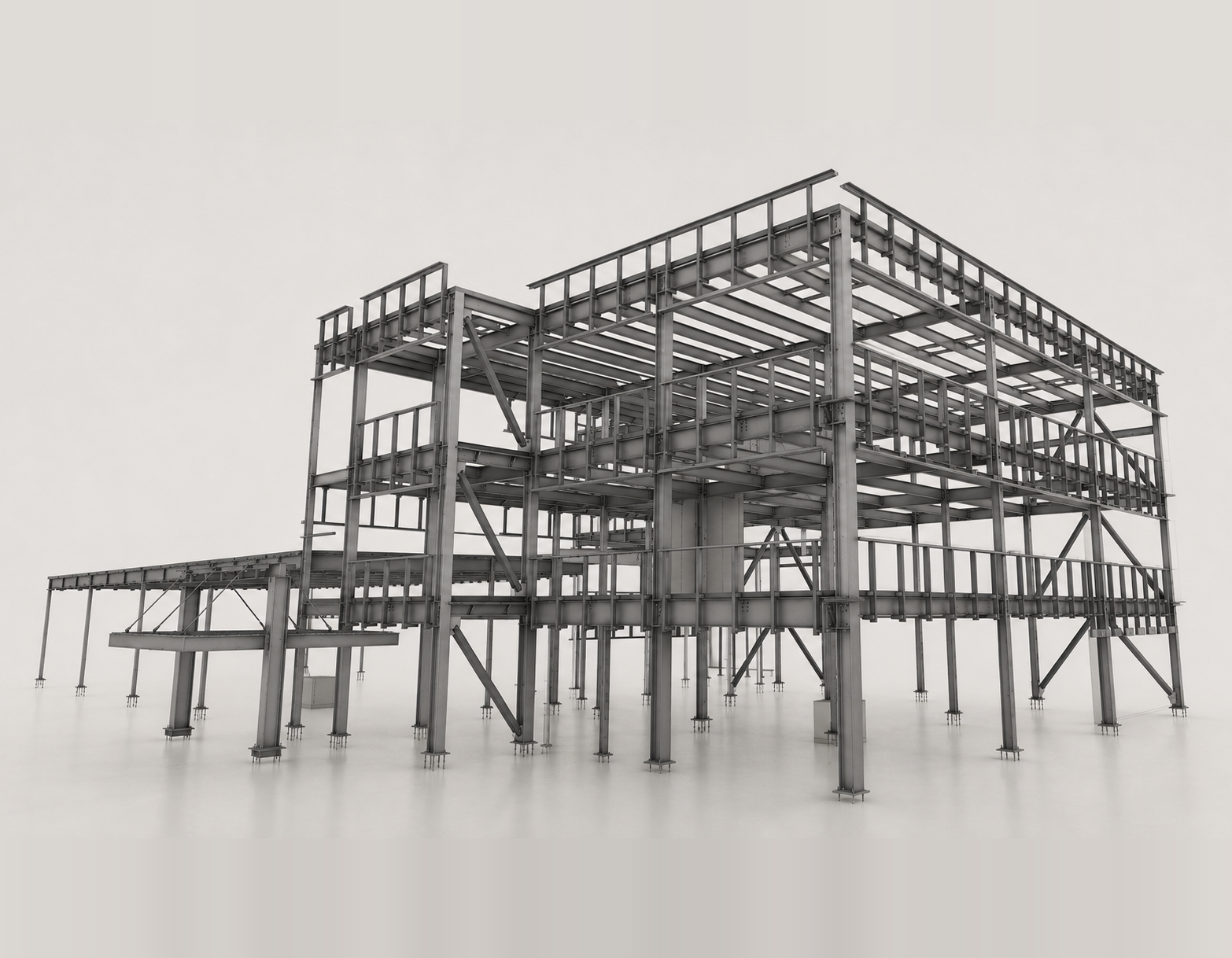

Photorealistic fabricated structural steel building frame

Structural Steel Detailing

We are experienced in detailing structural steel jobs of all types and sizes, from multi-story buildings and roof steel to industrial structures for mines and treatment plants.

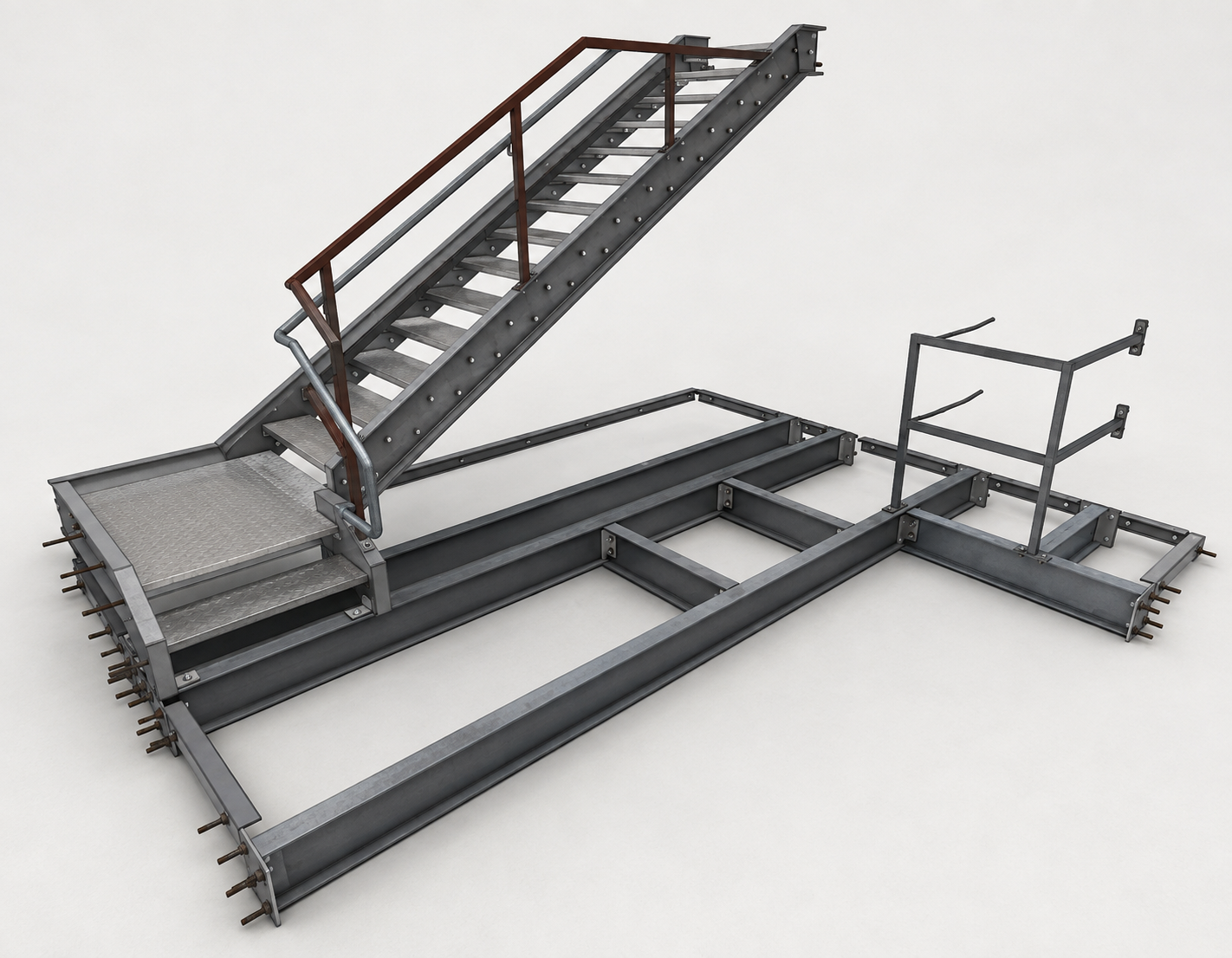

Photorealistic fabricated steel stair, platform, framing, and railings

Miscellaneous Metals Detailing

Miscellaneous metals (including aluminum and stainless steel) is one of our specialties; from multi-story stair systems and roof access ladders, to cover plates and grating.

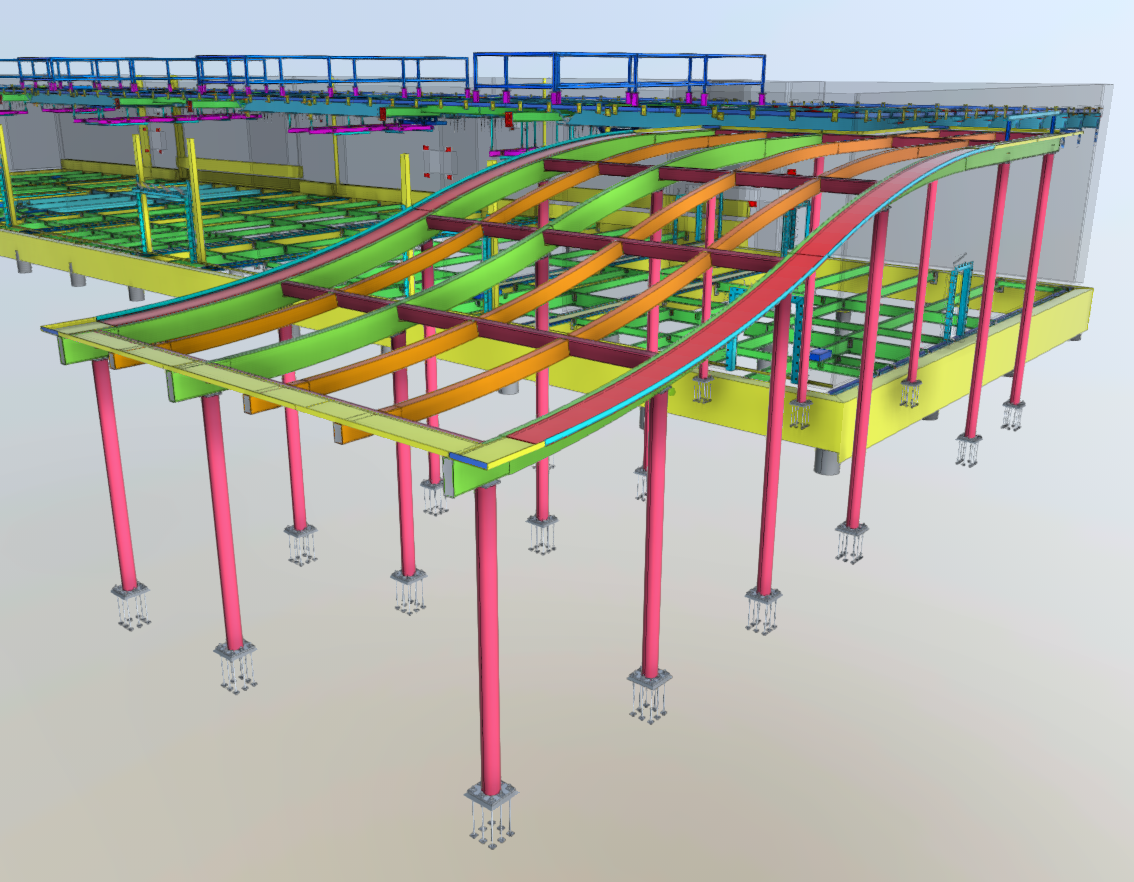

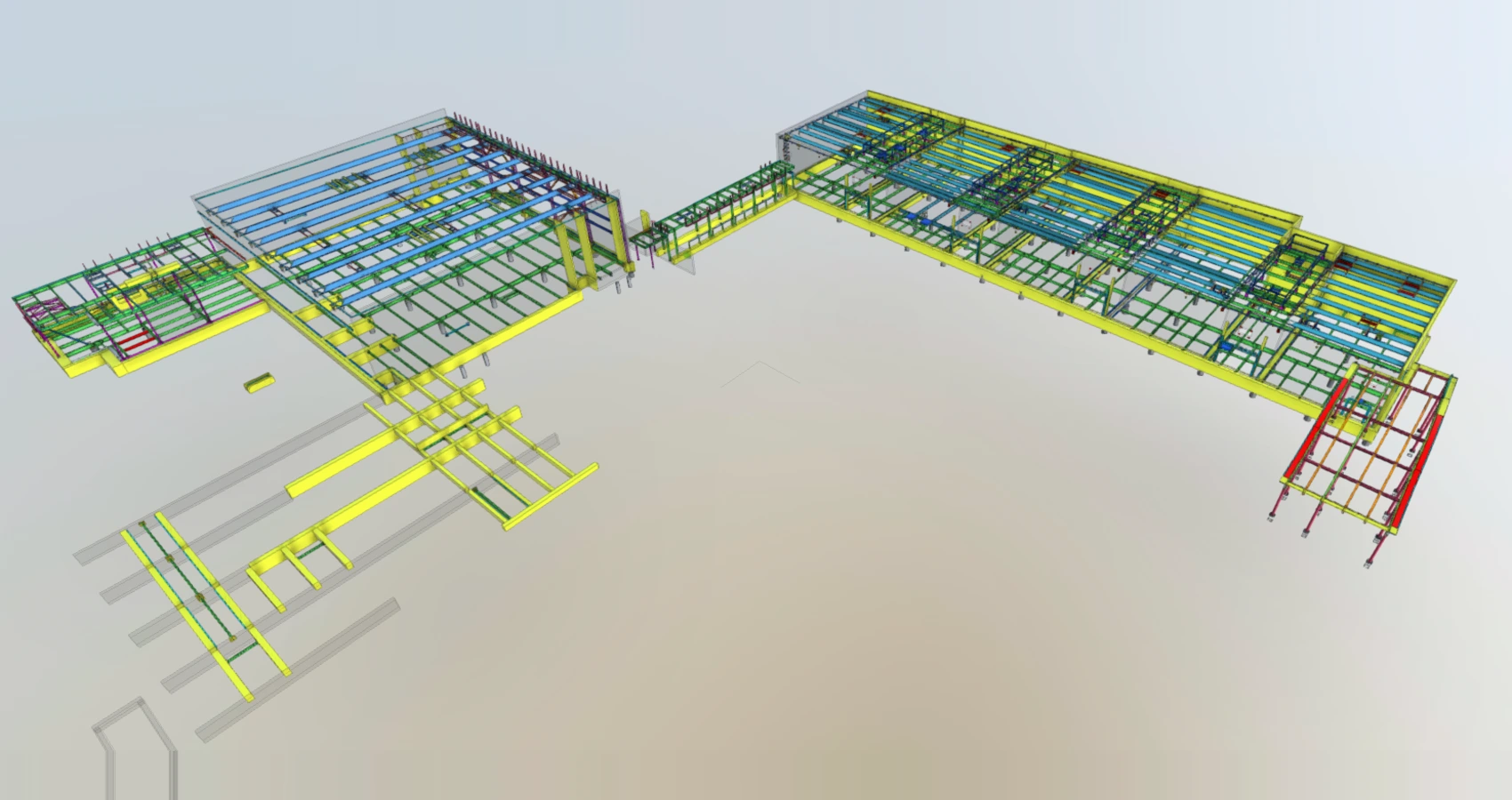

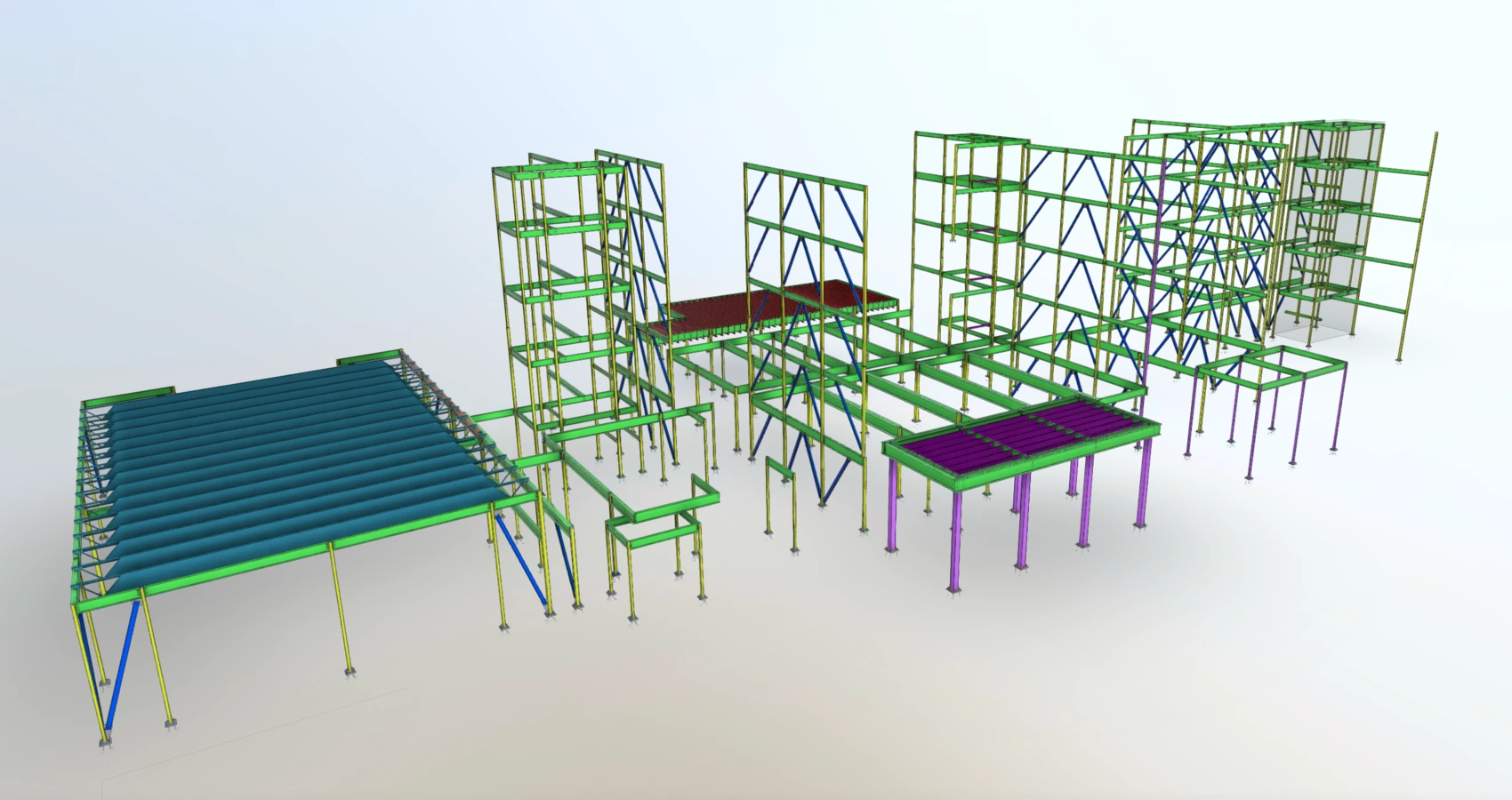

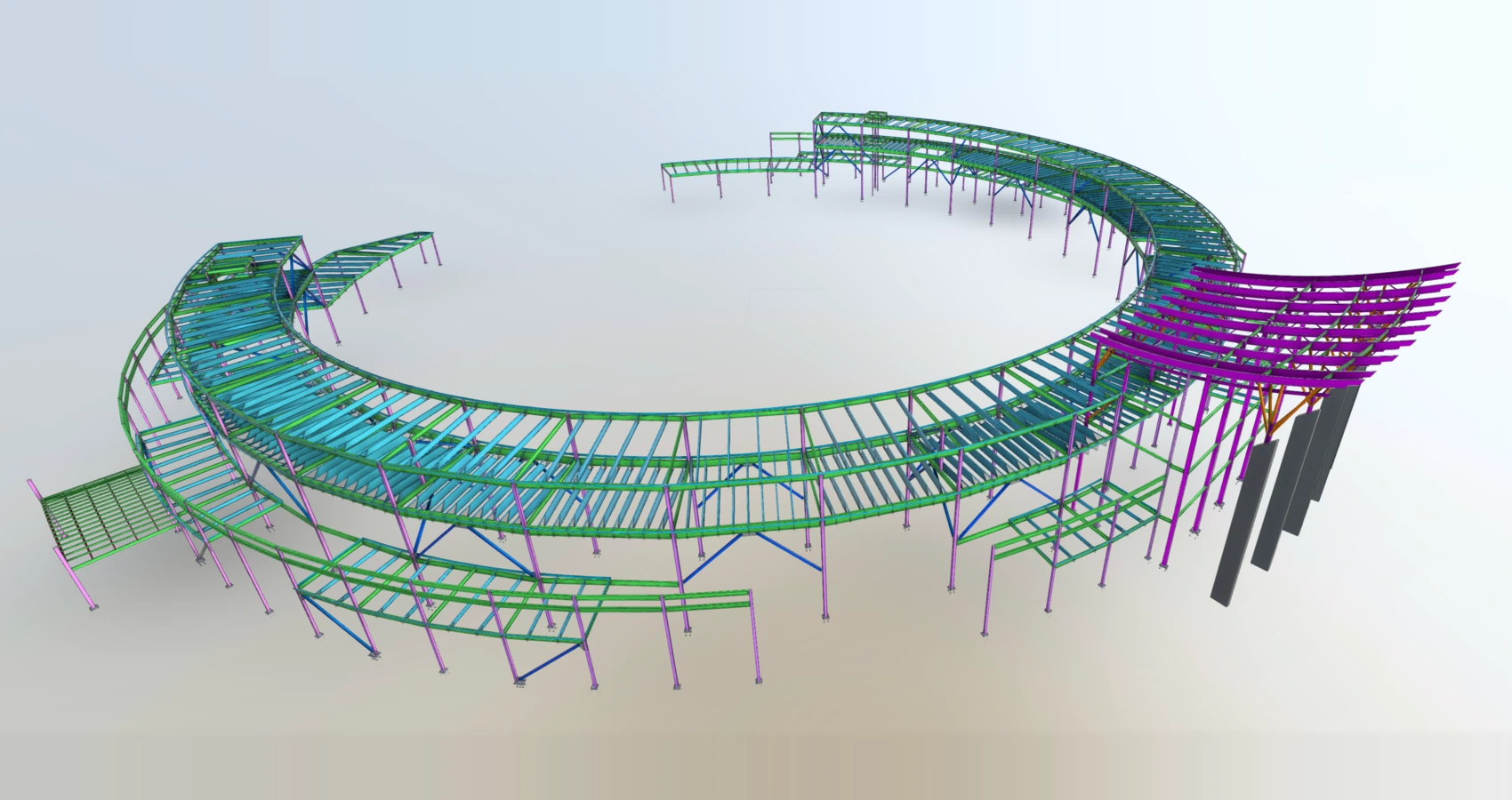

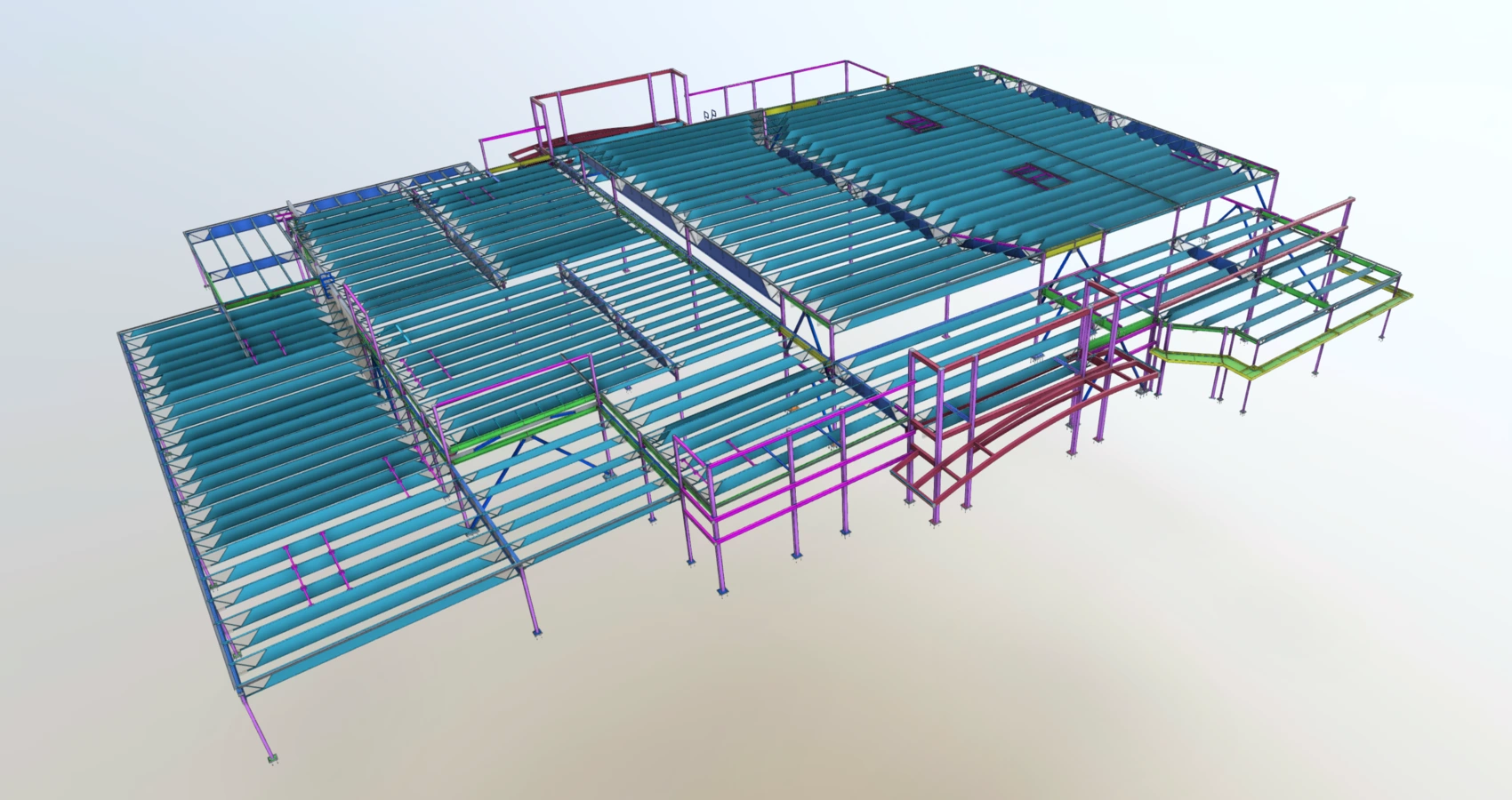

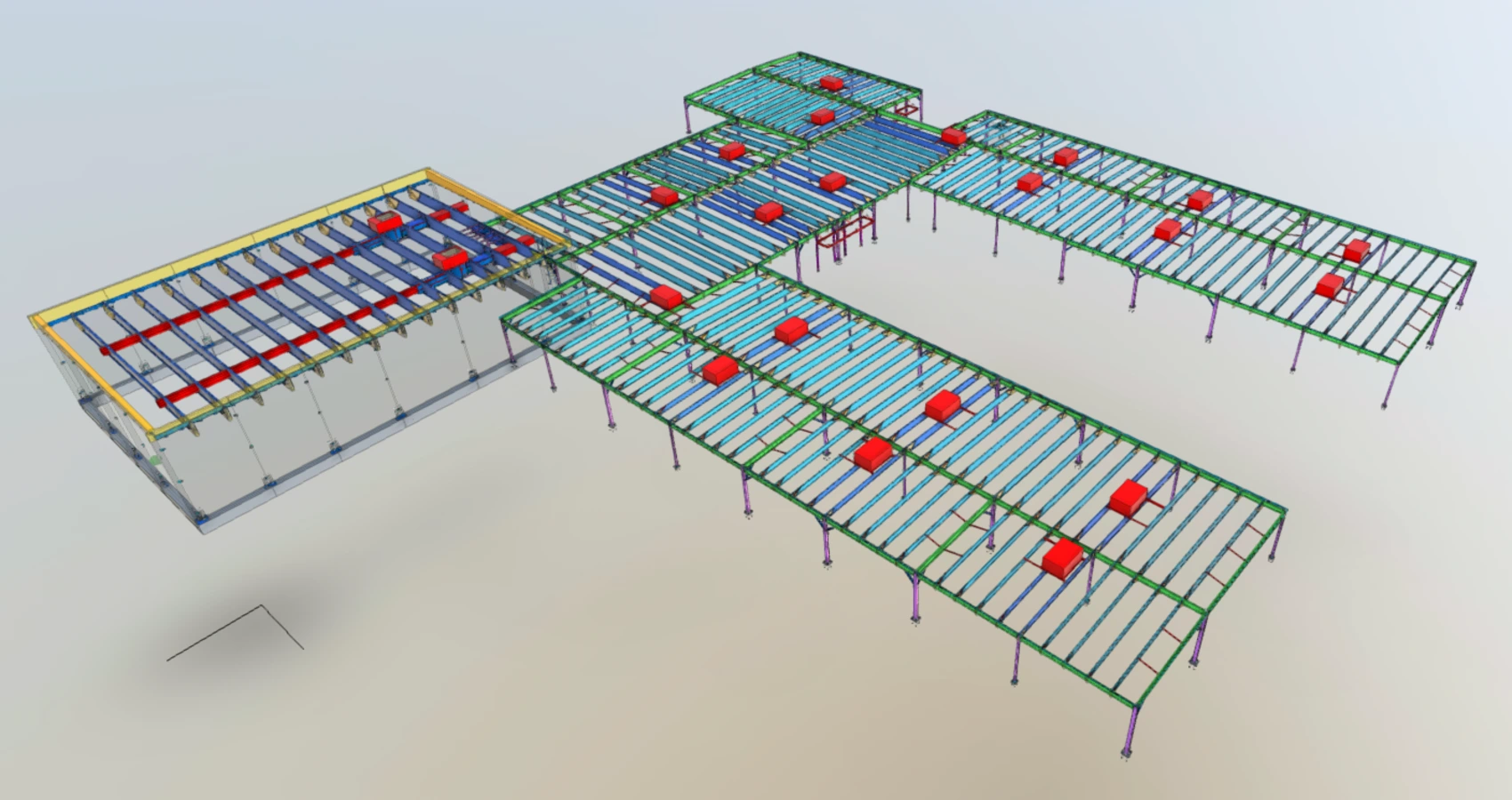

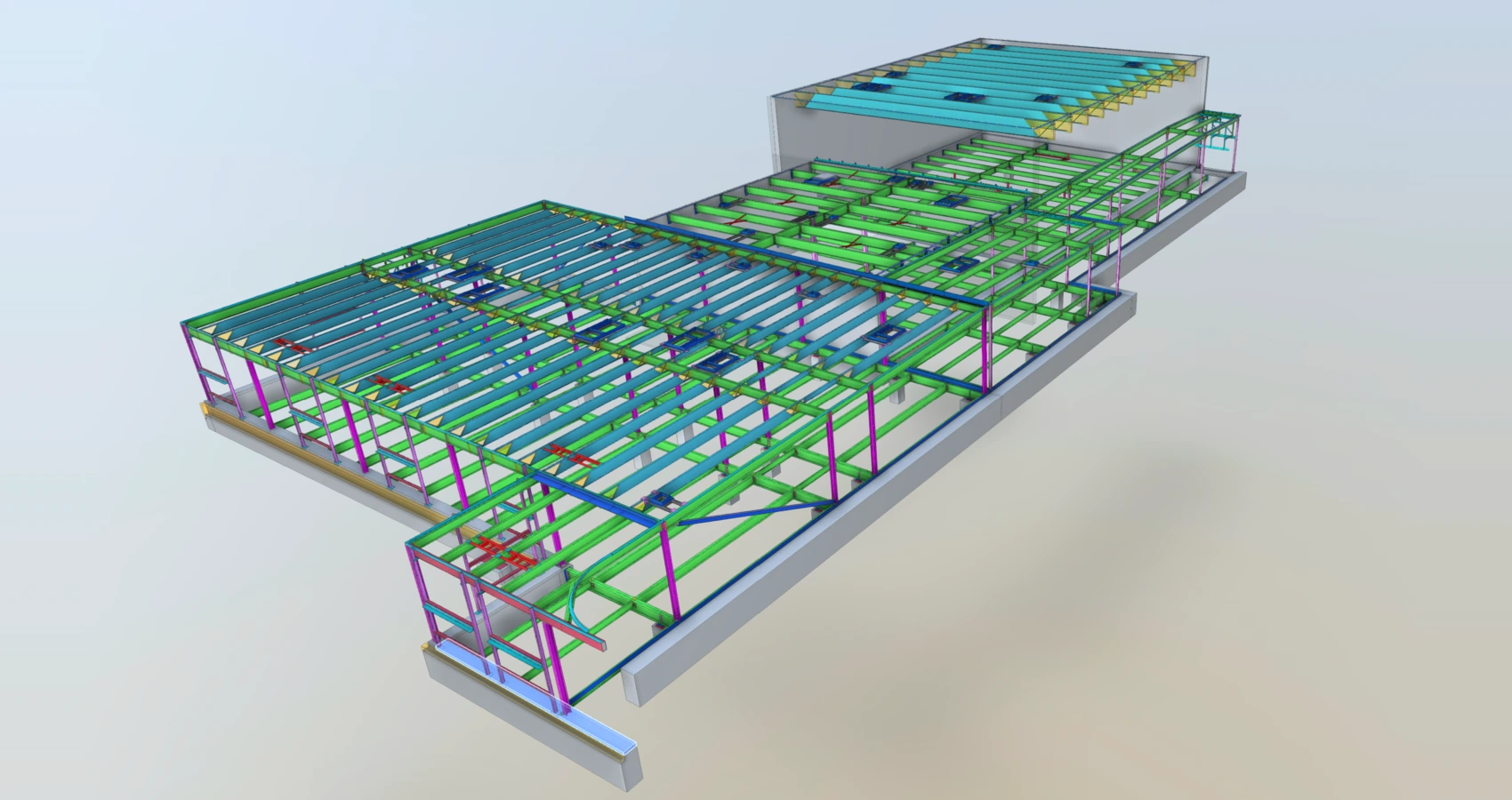

Color-coded 3D BIM model of structural and miscellaneous steel framing

3D BIM Modeling

Every project is fully modeled in 3D, allowing us to coordinate the full steel scope, identify conflicts early, and provide fabrication-ready outputs including CNC-ready files.

Shop drawings, erection plans, 3D models, and CNC-ready file exports in formats such as KSS, DXF, NC1, PFXT, etc.

No Surprises When Steel Hits the Shop

Our priority is simple: keep every project moving smoothly from start to finish.

Division 5 is more than just your average detailing company. We are experienced in every aspect of the steel construction industry: detailing, estimating, project management, etc.

Critical Industry Experience

We solve problems on paper before they show up in steel. With the increasingly poor quality of contract drawings being issued today, it is absolutely critical to work with an experienced detailer who knows the industry inside and out.

Fabrication First Detailing

We detail with fabrication, shipping, erection, and surrounding work in mind so the drawings support the job from shop to field.

Reliable Delivery Dates

When we quote a delivery date, you can count on it. We have a proven track record of delivering shop drawings on time, keeping your project on or ahead of schedule.
